Advanced Control of Tandem Metal Sheet Rolling Processes

Collaborators



Dr. Marwan A. Simaan - ECE (Pitt-UCF)

Dr. John Pittner - ECE (Pitt)

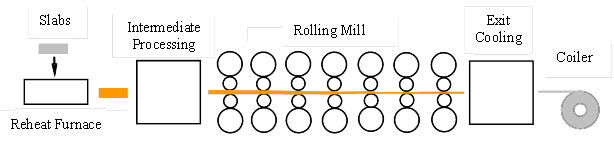

Typical Seven Stand Hot Rolling Mill Schematic

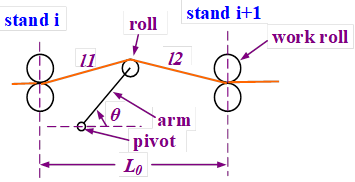

Looper Schematic



Description: SMS Demag AG - Hot rolling mills

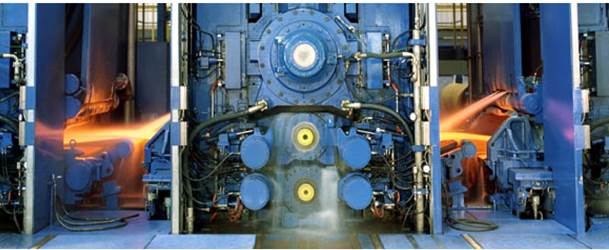

Rolling Mill Stand







Looper at Raised Position

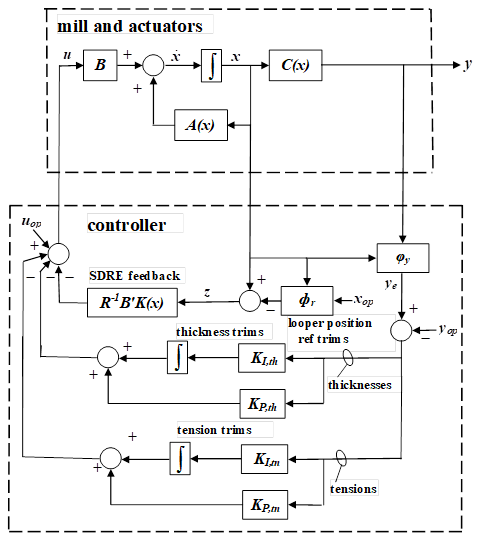

Application of SDRE to the Tandem Hot Strip Mill









IMG_1104



J. Pittner and M. A. Simaan, Tandem Cold

Metal  Rolling Mill Control Using Practical Advanced Methods Springer-Verlag, London 2011









Project Summary



The rolling of hot metal strip in a tandem finishing mill is an important industrial manufacturing process that has considerable implications related to the health of the US economy. However, at present the US competitive position in the world market of rolled metal products remains seriously degraded. Much of this can be attributed to conventional metal manufacturing processes whose control has remained unchanged over the past decades, plus the lack of domestic research which would lead to modernization to improve the control of these processes, both conventional and those which are more up-to-date. The objective of this project is to perform the basic research needed to bring modern control technology to the entire tandem hot metal rolling industry. It is our belief that improvement in the quality of the final product of the tandem hot metal rolling process requires a major improvement in the method of process control. The results of this research are expected to result in major cost savings in production, which ultimately means an improvement in the competitive position of the US metals industry in the world market. Moreover, this project can be a first step toward the recovery of domestic research in this area if the US is to successfully compete with other countries such as China where similar research is advancing rapidly.



Our approach to achieving our research objective involves collaboration between the University of Central Florida and the University of Pittsburgh. We will expand on our successful previous work related to cold rolling to explore a new control mechanism which exhibits the viable and practical characteristics of the cold controller. While the cold controller was based on a single operating point, the new controller will expand to handle a wide range of operating conditions, products, and uncertainties that are typically encountered in the actual manufacturing of tandem hot rolled products. In the discovery of the new controller, we will expand the mathematical model that was developed previously to simulate real physical processes and evaluate controller performance. The significant advancement of the knowledge base related to the control of tandem hot metal rolling is the main intellectual merit of this activity.  Additionally, the project will be a major initial step in research leading to the modernization of this vital manufacturing industry. The results stemming from work will contribute to the improvement of the basic understanding of fundamental issues related to the control of this important manufacturing process, and be a first step toward the highly needed revitalization of domestic research leading to improvement in our competitive position in the world-wide market.
